Configure and run Calibre RealTime

Ideal for iterative use whilst designing

Calibre RealTime is ideal for iterative use whilst designing. The need to compile rulesets and export the GDSII file to perform DRC is eliminated, and instead, on-demand DRC is enabled creating an efficient, agile design process.

Further product details

Calibre Interactive

Calibre Interactive GUI gives users access to the Calibre RVE interface, the robust and easy-to-use results viewing environment. Deploy foundry decks to design flows The Calibre Interactive interface is integrated with all major custom design and P&R tools, as well as a wide range of specialty design tools, to offer…

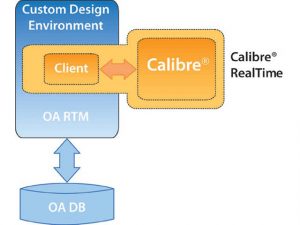

Calibre RealTime Custom

Calibre DRC confidence in Custom Design The award-winning Calibre RealTime Custom interface lets custom/AMS IC designers perform fixes and what-if analysis during implementation, and adjust layouts to produce designs that are DRC-clean, resistant to manufacturing variability, and optimised for performance and operational characteristics.

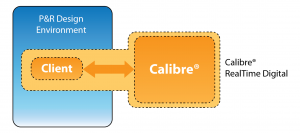

Calibre RealTime Digital

The Calibre RealTime Digital interface enables on-demand Calibre sign-off design rule checking for digital design flows, enabling physical design and verification engineers to optimise their manual DRC fixes and focus on meeting their power, performance and area (PPA) goals in far less time. Confidence in digital design The Calibre RealTime…

Calibre RVE

Debugging the error results of physical and circuit verification is costly, both in time and resources. Calibre RVE provides fast, flexible, easy-to-use graphical debugging capabilities that minimize your turnaround time and get you to “tapeout-clean” on schedule. Better yet, Calibre RVE easily integrates into all popular layout environments, so no…
