Calibre RealTime Digital

The Calibre RealTime Digital interface enables on-demand Calibre sign-off design rule checking for digital design flows, enabling physical design and verification engineers to optimise their manual DRC fixes and focus on meeting their power, performance and area (PPA) goals in far less time.

Confidence in digital design

The Calibre RealTime Digital interface enables P&R engineers to optimize DRC fixes during “last mile” manual DRC closure, enabling them to shave weeks off their tapeout schedule and focus on meeting their power, performance and area (PPA) goals.

CALIBRE SIGN-OFF CONFIDENCE

Immediate DRC feedback

Provides immediate DRC feedback using standard foundry-qualified Calibre rule decks in P&R, accelerating DRC closure for digital designs.

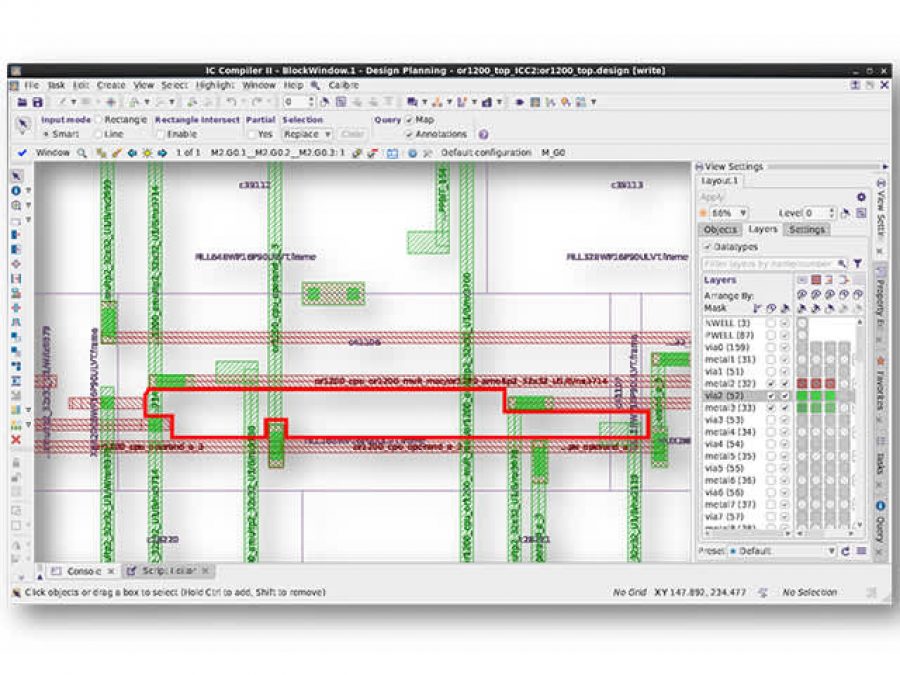

Calibre Interactive screenshot

TARGETED DRC CHECKING

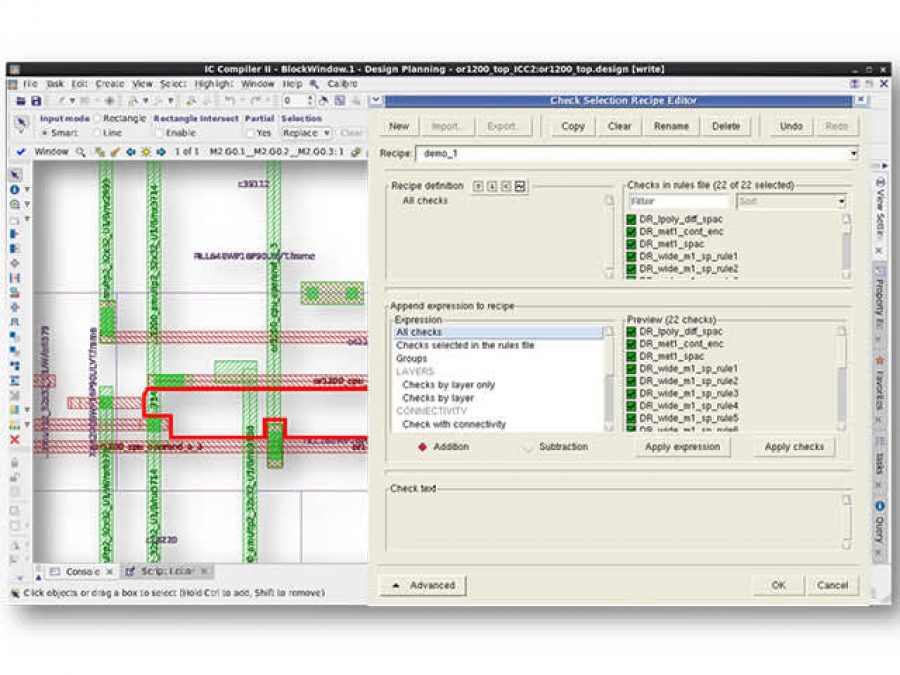

Configure custom check recipes

The Calibre RealTime Digital interface enables designers to configure check recipes suitable for cell, block and full-chip designs, enabling P&R engineers to perform targeted DRC checking and systematically find and fix DRC issues with reduced number of DRC iterations.

BASE LAYERS DRC IN P&R

Verify IP/Full chip interface DRC

P&R engineers can perform immediate sign-off DRC checking, including base layers DRC, on “last-mile” manual fixes in P&R, enabling accelerated DRC closure.

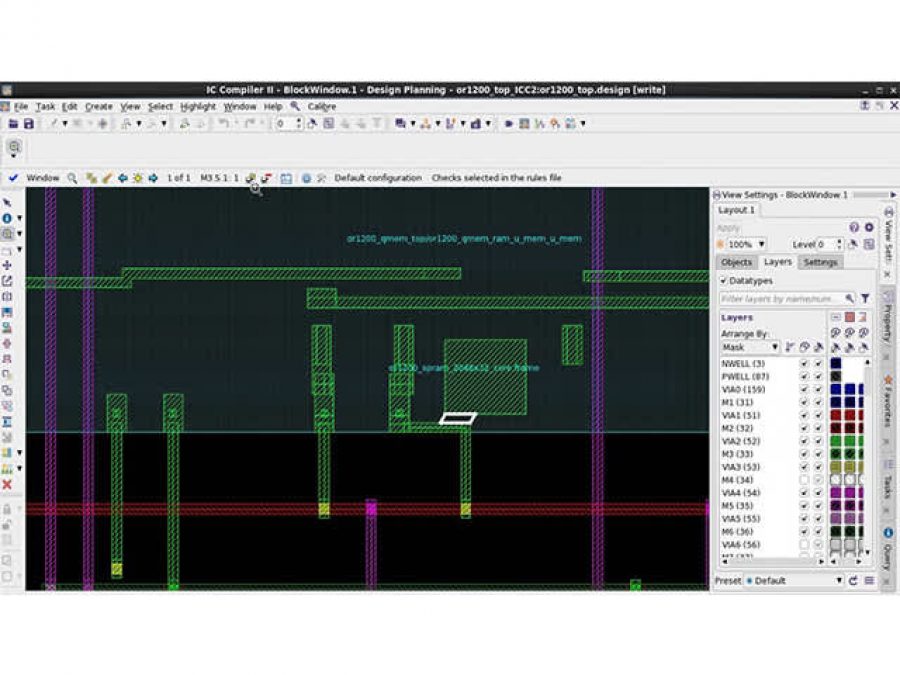

Calibre interactive screenshot - verify IP
