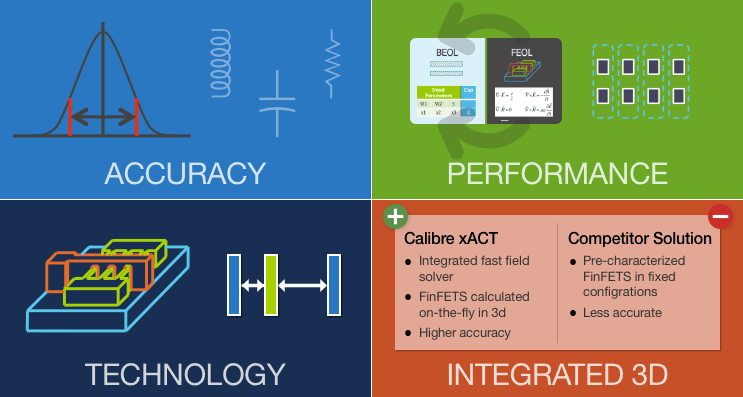

The Calibre xACT tool delivers reference-level accuracy for leading-edge FinFET, custom, analog and RF designs. It is a versatile parasitic extraction platform with performance and capacity for multi-million instance digital designs.
Supports the most advanced foundry device models, including FinFET, and leading edge process nodes with accurate, deterministic results. Results from simultaneous multi-corner extraction precisely match single-corner results.
Efficient algorithms, advanced computational methods, and a multi-threaded, distributed processing architecture provide performance and capacity to handle multi-million instance digital designs.
The Calibre xACT tool uses standard SVRF rule files to produce parasitic netlist formats. Interoperable with Calibre nmLVS and Calibre nmDRC platforms and supported by all major foundries. Provides trusted device recognition, connectivity extraction, and ease-of-use in existing user sign-off flows.
