Industry’s fastest and most versatile mixed-signal platform

The industry’s fastest and most configurable mixed-signal solution to accurately verify design functionality, connectivity, and performance across A/D interfaces at all levels of the design hierarchy and for all IC applications. Now Available – Symphony Pro!

Symphony’s modular architecture leverages AFS to provide the fastest mixed-signal simulation performance with nm SPICE accuracy, proven on a wide range of ICs and IC subsystems including ADCs, transceivers, PMICs, multi-GHz PLLs/DLLs, and sensors.

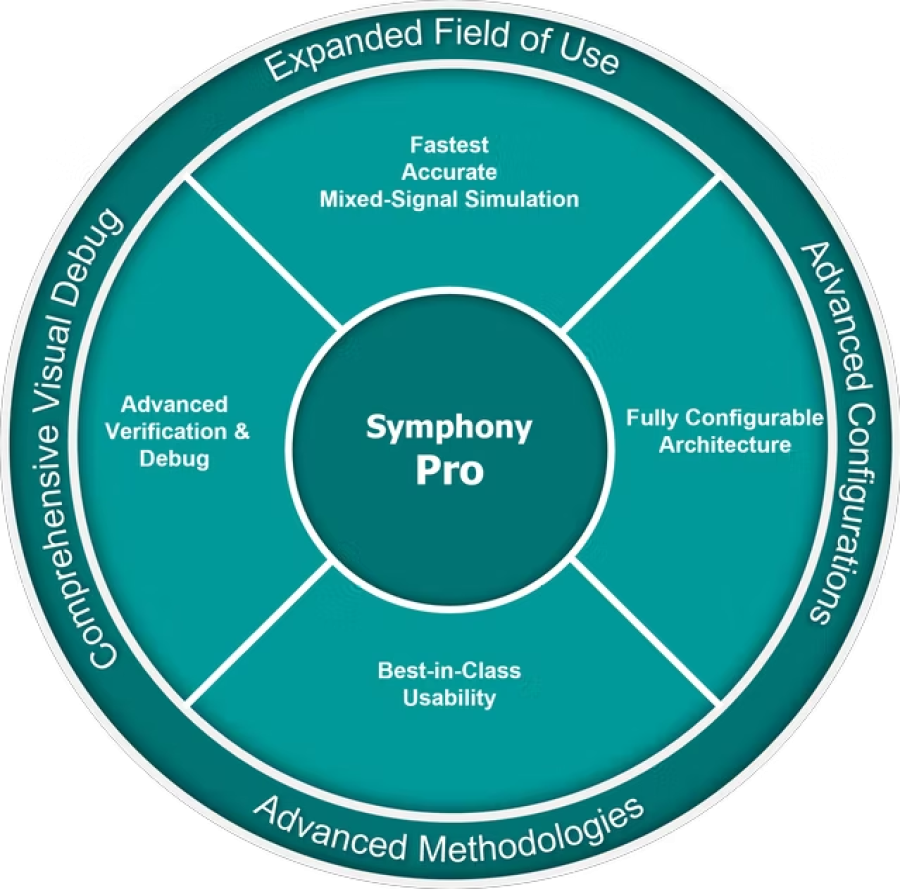

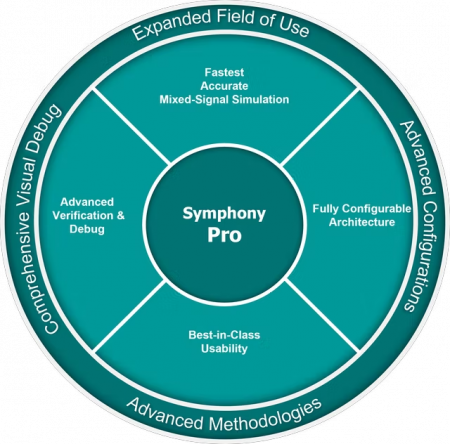

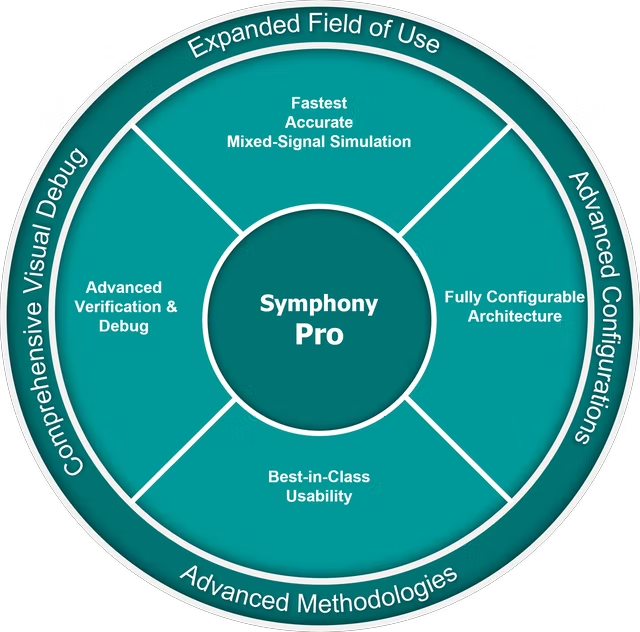

Fastest accurate mixed-signal simulation

  • Fully leverages AFS advantages
  • Foundry certified nm SPICE accuracy
  •  > 5-10x faster analog solver than traditional SPICE solvers
  • > 2-6x faster analog solver than parallel SPICE solvers

Fully configurable architecture

  • Fit-to-purpose architecture and design-aware technologies
  • Supports industry-leading digital solvers
  • Extensible to all Siemens Digital Industries Software analog solvers
  • Provides maximum reuse of verification infrastructure
  • Integrated into leading schematic capture flows
  • Provides comprehensive language support

Best-in-class usability and setup

  • Support for analog/digital-centric flows
  • Simple and intuitive configuration file format
  • Ability to reuse A/D command-line arguments
  • Powerful A/D boundary element support
  • Efficient waveform viewing with EZwave viewer
  • Save/restore capability for enhanced productivity

Advanced verification & debug

  • Mixed-signal Hi-Z detection
  • Solido Variation Designer integration
  • BE Browser with cross-probing for visual context-based debugging
  • Tcl interactive mode for runtime debugging

Symphony Pro

  • Support for advanced digital-centric verification methodologies for mixed-signal designs
  • Comprehensive support for Real Number Modeling
  • Support of Mixed-Signal Coverage and Assertions
  • Support of low power mixed signal verification
  • Seamless debug experience across the entire mixed-signal design hierarchy with
    Visualizer MS
  • Works with Siemens EDA Questa logic simulator

Included products


The EZwave Joint Waveform DataBase (JWDB) is a high-performance waveform database for manipulating huge waveform databases from leading simulators, loading gigabytes of data in seconds.
